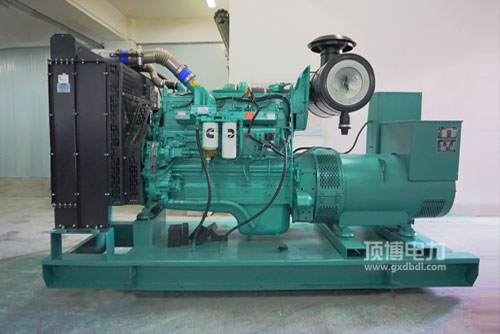

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯带发电用启倾向燃料条件性好: 优秀的燃料抑制整体，独立拥有的STC、ESTC 分级分类抑制整体，特别的规划的活塞杆最上层然烧室，直流电喷洒燃料，多方面雾化吸入，然烧多方面。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯风能发电用热车机瞬态性能指标良好: 完全的热车机整体上设定，协助康明斯特别的EFC系統，控住gps精程度高，出现异常时刻快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯并网发电用起动因升电功率高: 整体性制作宽敞.性能流程恰当，启用平衡。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷机种 QSNT. QSK19. QSK38. QSK50足够国内 非路线第3时间段及南美Tier2. Tier 3排出规范特殊要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零备件可获得性好， 打火机运作及保护的保养友盒，料工费低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

功效范围内 Power Range   224-310KW结构类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观设计长度 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净产品质量 Dry Weight   940kg

224-310KW康明斯火力发电用打着机的优缺点：体型小， 收缩比低， 喷淋喷嘴的空气调温，便于再启动，中移动车载导航电源开关的第一选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打着机主要参数	较常用电机功率(kW)Prime Power	自备工作电压kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
